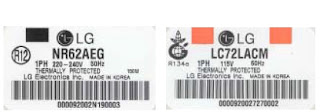

LG Refrigeration Compressor

LX 72 L A E G

LX = Series name
NS NSA NSB ND NDA NR LX LA LC MA MB MC

72 = Displacement
ex) 72 = 7.2cc/rev

L = Application category
: R12, LBP
L : R134a LBP
H : R134a, HBP
N :R600a, LBP

A = Improvement order
A, B, C, D

E = Rated voltage & Freque
A : 110V - 50/60Hz
B : 220V - 50/60Hz
C : 115V - 60Hz
D : 220V - 60HZ
E : 220/240V - 5OHz
F : 127V - 60Hz
J : 220V - 50Hz
K : 110V - 60Hz
P : 110V - 50Hz
Q : 110/115V - 60Hz
S : 200/220 - 50Hz 200V - 60Hz
U : 110/127V - 60Hz

G = Motor type
G : RSIR, PTC
F : CSIR, PTC
M : RSCR, PTC
H : CSR, PTC
P : CSIR, RELAY

Download this catalog here

View

R22 QA Series
R22 QK Series
R22 QJ Series
R22 QP Series
R 2 2 -Tropical Application
R 2 2 Twin Rotary Series
R407C Rotary Compressor
R410A Rotary Compressor
R22 RK Series (Horizontal Ty p e )
I n v e rt e r
R22 QS Series
R22 QA Series
R22 QK Series
R22 QJ Series
R22 QP Series
R 2 2 Twin Rotary Series
R22 QK Series
R22 QJ Series
R22 SQ Series
R22 SB Series
R22 SR Series
Unitary R 2 2
Unitary R 4 1 0 a
R410A AQ/AR Series
R407C HQ/HR Series
Please download here PDF | 8,50 MB
